RockJock's XJ Rear Leaf Springs have been tested and found to provide the best on-road ride and the most off-road flex, all in one spring!

The 3 1/2 inches of lift that this spring provides allows your XJ to easily clear a 32 in. tall tire, or, with the additional 1/2 in. of lift provided by our JS-9081 shackles and a little trimming, you can clear a 33 in. tire!

Urethane bushings included in this kit provide suspension cushion reliability and long life. Steel inner bushing sleeves that are intended for use with the factory rear leaf spring hardware.

Kit Fits:

• XJ Cherokee - All Models
• Included component in our RJ-XJ0000-101 XJ Cherokee Suspension System

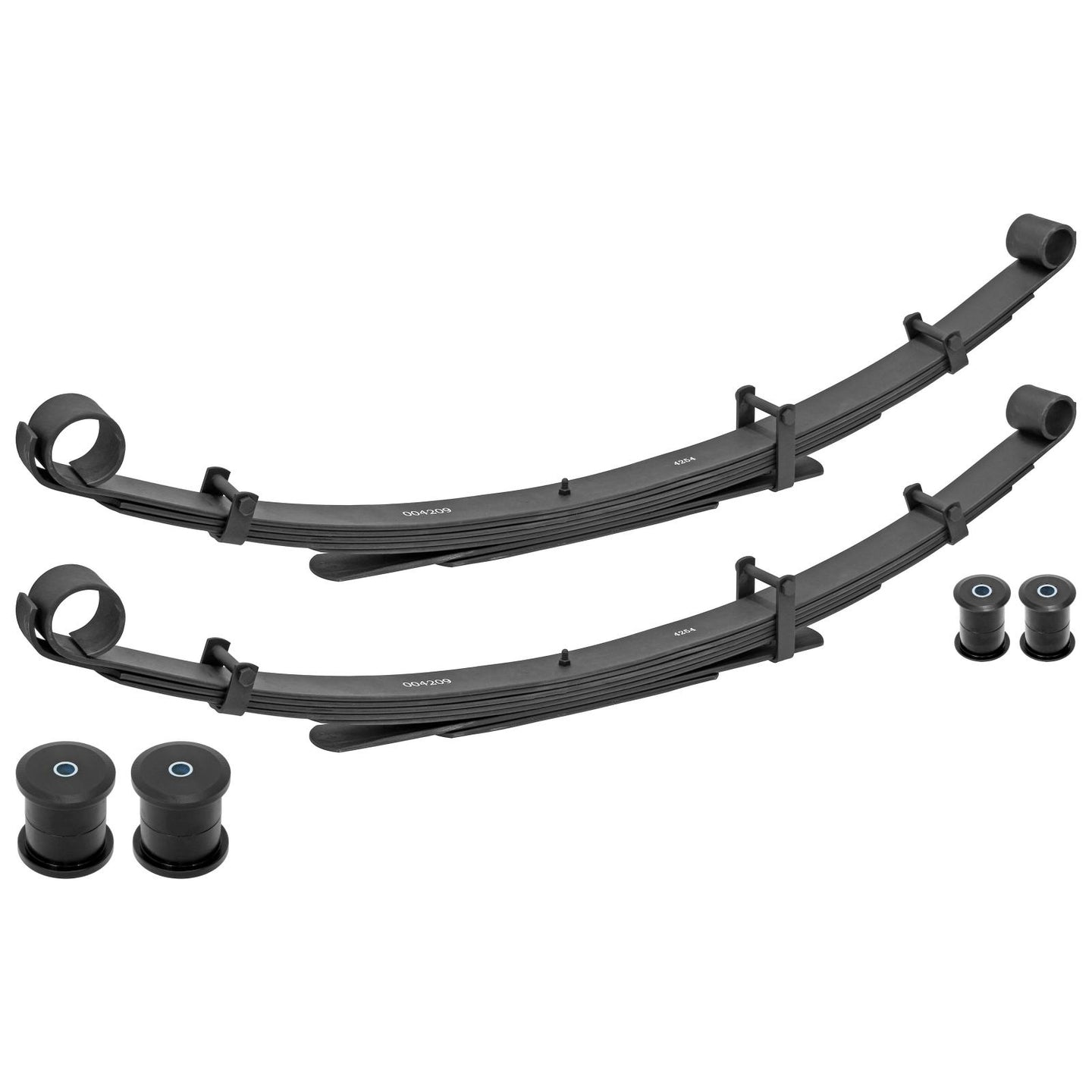

Kit Includes:

• (2) Rear Leaf Spring
• (4) Large OD bushing half (front of spring)
• (2) Steel inner sleeve to suite OD large bushing halves
• (4) Small OD bushing half (rear of spring)
• (2) Steel inner sleeve to suite small OD bushing halves

Spring Lift Amount Specs:

• (Exact lift amount specs. will vary depending upon vehicle load)
• 3 1/2 in. lift

Components Specs (Springs):

• Rate=190 lbs.
• Unloaded C-C Length=49 in.
• Width = 2 1/2 in.
• Leaf Count=7
• Pack Height (at center bolt)=1 7/8 in.
• Spring Eye ID (at front end of spring)=2 1/2 in.
• Spring Eye ID (at rear end of spring)=1 3/4 in.
• Spring Clamps=3 (one front, two rear)
• Finish=flat black paint
• Sold=each

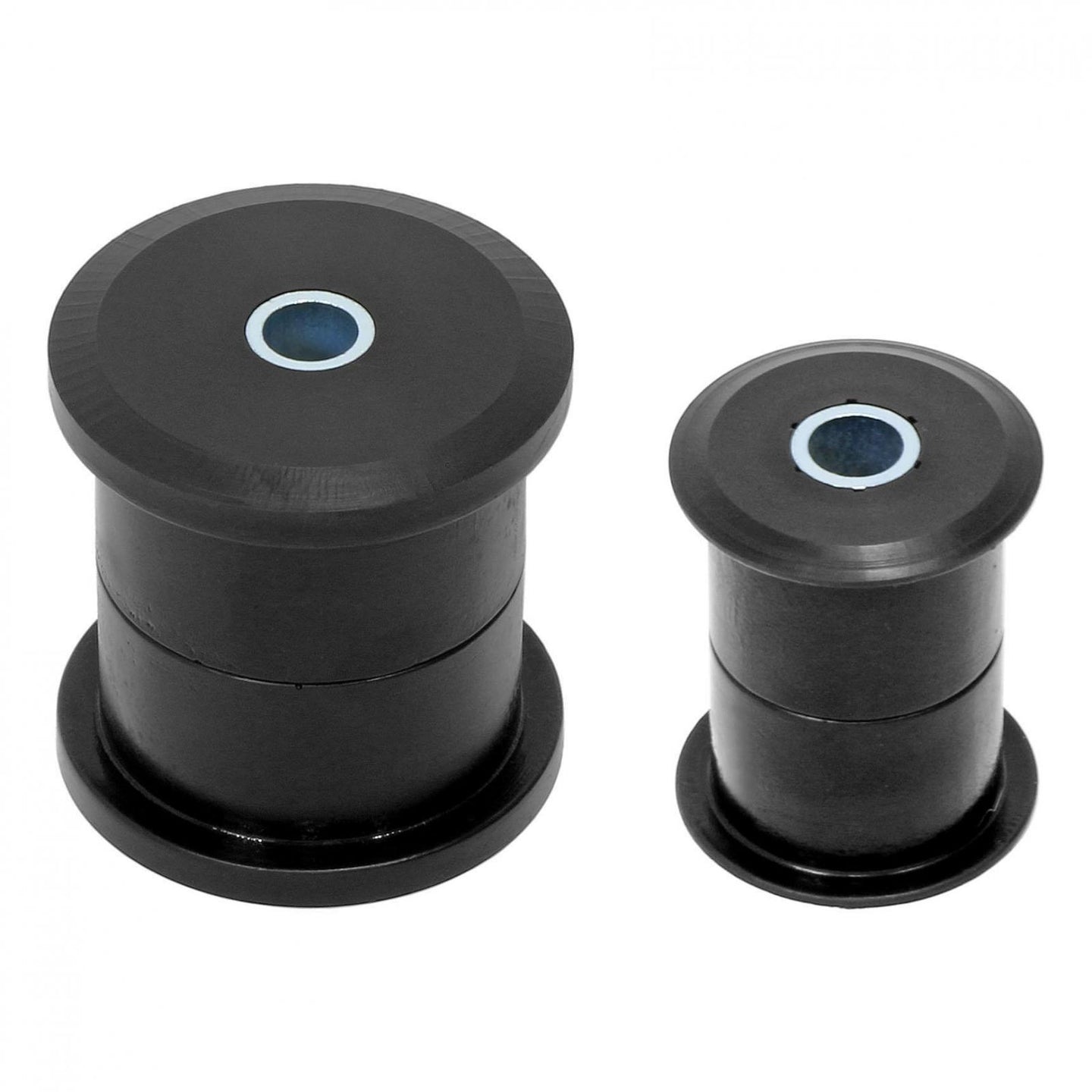

Component Specs (Bushings):

• Constructed from=case and machined polyurethane
• Large Bushing Flange=3 in. OD x 1/4 in. thick
• Large Bushing Press Area=2 1/2 in. OD x 1 1/4 in. tall
• Large Bushing Thru-Hole=3/4 in.
• Large Bushing Steel Inner Sleeve=3 1/8 in. long x 3/4 in. OD x 17/32 in. ID
• Small Bushing Flange=2 1/8 in. OD x 1/8 in. thick
• Small Bushing Press Area=1 22/32 in. OD x 1 5/16 in. tall
• Small Bushing Thru-Hole=3/4 in.
• Small Bushing Steel Inner Sleeve=2 3/4 in. long x 3/4 in. OD x 17/32 in. ID

Notes:

• Included component in our RJ-XJ0000-101 XJ Cherokee Suspension System
• For added performance, see RockJock's JS-9081 Boomerang Shackles.
• Actual lift amount will vary due to factory variances from vehicle to vehicle as well as the amount of weight added onto the vehicle following the installation of aftermarket equipment. Additionally, all provided lift specs. take into account that the vehicle retains the factory installed engine.
• As a general rule, purchasing the same stated amount of lift front springs to match the lift amount of these rear springs will provide a level finished vehicle. However, again, vehicle load - or lack there of - will directly affect vehicle height, hence we have various front springs to accommodate different vehicle load applications.
